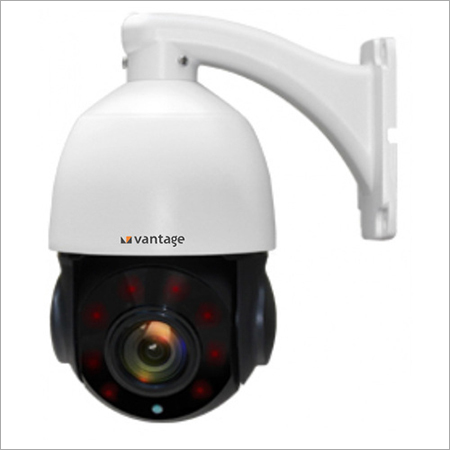

Analog Mini PTZ Dome Camera

Analog Mini PTZ Dome Camera

42259.00 - 52000.00 INR/Piece

Product Details:

X

Analog Mini PTZ Dome Camera Price And Quantity

  • 42259.00 - 52000.00 INR/Piece
  • 5 Piece

Analog Mini PTZ Dome Camera Trade Information

  • Cash Against Delivery (CAD) Cash on Delivery (COD) Cash Advance (CA) Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Western Union Paypal Telegraphic Transfer (T/T) Delivery Point (DP) Days after Acceptance (DA) Cash in Advance (CID) Cheque
  • 100 Piece Per Day
  • 1 Week
  • Yes
  • Will be delivered with good packaging
  • UL & BIS

Product Description

Technical Specification

Parameter

Specifications

Camera

Image Sensor

1/3" Progressive Scan Sensor

Signal System

PAL/NTSC

Effective Pixels

1920 (H) × 1080 (V)

Minimum Illumination

Color: 0.01Lux@( F1.4, AGC ON); B/W: 0.0015Lux@( F1.4, AGC ON); 0 Lux with IR

Electronic Shutter Speed

1/1~ 1/10,000s

Signal to Noise

> 62 dB

Gain Control

Auto / Manual

White Balance

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

Auto Iris

Auto / Manual

Lens

Lens Type

5.1 ~ 51mm, 10x Optical

Angle of View

47 ~ 5.3 degree (Wide-Tele)

Focus

Auto Focus

Zoom

10x Optical Zoom

Zoom Speed

Approx.3s (Optical Wide-Tele)

Aperture Range

F1.4 ~ F3.5

Compression

Video compression

H.264 / MJPEG

H.264 codec profile

Main profile

Video Bit Rate

32 Kbps ~ 16 Mbps

Resolution and Frame Rate

Max. Resolution

1920 x 1080

Frame rate

50Hz: 25 fps (1920×1080), 25 fps (1280×720);
60Hz: 30 fps (1920×1080), 30 fps (1280×720)

Day/Night Functionality

Day & Night

True Day & Night with ICR

IR Cut

High performance Mechanical IR Cut Filter with auto switch

IR Source

Inbuilt High performance IR LEDs

IR Range

Up to 60 Mtrs

IR Irradiation Angle

Automatically adjusted, depending on the zoom ratio

IR Life

40000 operation hours

Pan-Tilt

Pan Angle

360° endless pan rotation

Tilt Angle

0° to 93° (Auto Flip)

Pan Speed

0.02° ~ 480°/s

Tilt Speed

0.02° ~ 160°/s

Presets

220

Preset Accuracy

± 0.1°

Patrol

3 patrols, up to 16 presets per patrol

Tour Pattern

4 Tour patterns

Power-off Memory

Supported

PTZ position display

Supported

Operational Features

OSD Menu

Supported

Camera ID

On/Off

Privacy Masking

Yes, Mutiple Zone Supported

Digital Zoom

16X

Motion Detection

Supported

Backlight Compensation

Supported

Video Adjustment

Supported

WDR

D-WDR

Protocols

PELCO-P, PELCO-D, Multi protocol support

Baud Rate

2400/4800/9600bps

DNR

Inbuilt 3D DNR (Digital Noise Reduction) circuit

Codec streaming capability

Dual streaming

Image settings

Rotate mode, Saturation, brightness, contrast, sharpeness adjustable through client software or web browser

Security

User authentication, watermark, IP address filtering, anonymous access, reset

Network & Remote Monitoring

Protocols

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS, DDNS,NTP,RTSP,RTP,TCP/IP ,DHCP, PPPoE

System compatibility

ONVIF

CMS

Full function CMS ( Central monitoring software)

User Access

32 users online with professional authority management

Mobile Client Application

Supports android and iOS APP for Smart phone and tablets

Bandwidth control

VBR (Automatic) and CBR (Manual) supported

Network storage

NAS

Interface

Ethernet

1 RJ45 10/100/1000 Ethernet port

Power Input

Standard DC Jack

Electrical

Power Requirement (± 10%)

12VDC,2A/ 24V AC, 2A

Power Consumption

MAX. 22W

Environmental

Enclosure

IP66 weather proof outdoor enclosure

Mounting bracket

External Mounting bracket included

Operating Temperature

-40°C to +65°C

Operating Humidity

95% or less (non-condensing)

Mechanical

Color

White

Certifications

Certifications

CE, FCC, RoHS
